1968 Chevelle Analog Dash Gauge Panel, Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel
***Housing/Bezel Not Included***

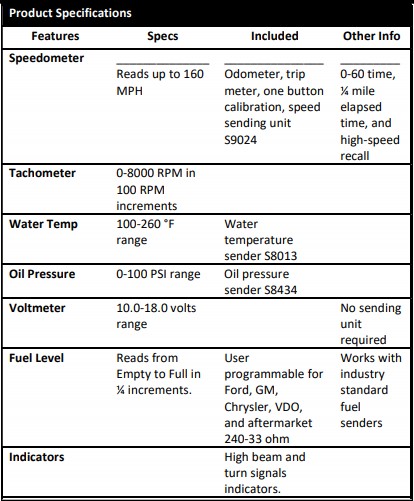

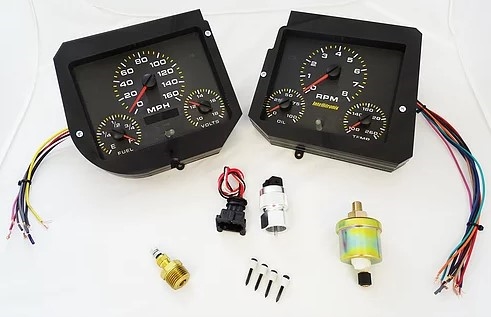

You will raise eyebrows with your new 1968 Chevelle Analog Dash kit that comes complete with Speedometer, Tachometer for 8-, 6-, 4-cylinder, Fuel Level, Voltmeter, Oil Pressure, and Water Temperature gauges. Turn signal indicators, high beam indicator, and sending units for speedometer S9024, water temperature S8013, and oil pressure S8434 are included along with clear acrylic, hardware, and complete installation instructions.
- The 1968 Chevelle Analog Dash works with any mechanical or electronic transmissions.
- The analog dash features automatic nighttime dimming.

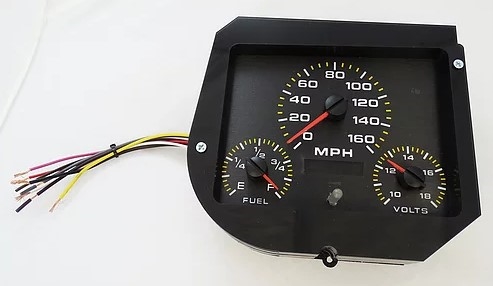

- Speedometer reads up to 160 mph and includes odometer, trip meter, one button calibration, 0-60 time, ¼ mile elapsed time, and high-speed recall.

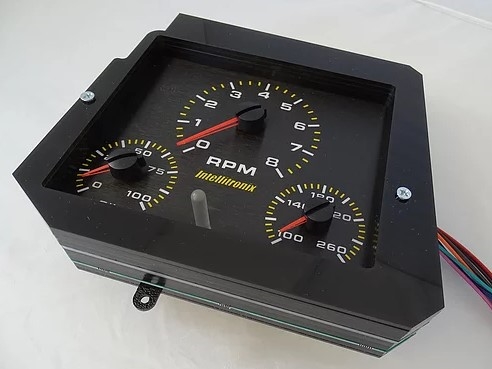

- Tachometer displays 0–8000 RPM in 100 RPM increments.
- Water Temperature displays a range of 100-260°F.
- Oil Pressure shows a range of 0 – 100 PSI.
- Voltmeter displays 10.0-18.0 volts range. No sending unit required.
- Fuel Level reads 0 – 99% range in 1% increments. User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders.
PART NUMBER: DAS-4244
|
|
|
 |
|
 |
