1966 - 1972 Chevelle and 1968 - 1972 Nova Wilwood Forged Dynalite Big Brake FRONT Disc Brake Kit Slotted Rotors

1966 - 1972 Chevelle and 1968 - 1972 Nova Wilwood Forged Dynalite Big Brake FRONT Disc Brake Kit Slotted Rotors



Alternative Views:


Price: $1,125.55


PART NUMBER: BRC-664

Caliper Color

Choose Caliper Color*:



Description Technical Specs Extended Information

1966 - 1972 Chevelle and 1968 - 1972 Nova Wilwood Forged Dynalite Big Brake FRONT Disc Brake Kit Slotted Rotors

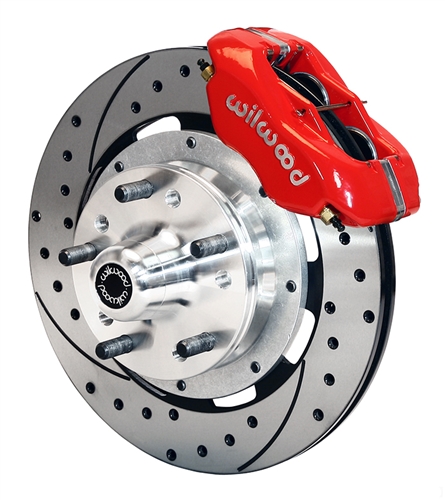

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite Red Calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. The red powder coated caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.


CautionTHIS BRAKE KIT HAS A HUB OFFSET OF: +.19
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

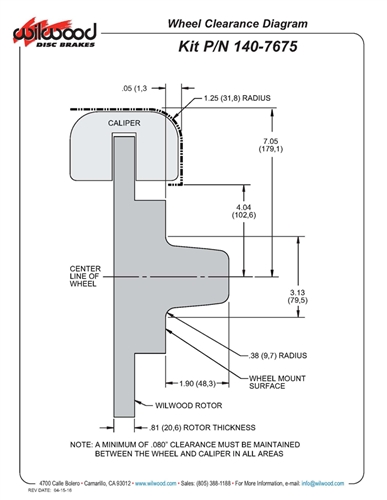

NOTE: Check "Wheel Clearance Diagram" in the installation Instructions to verify you have adequate wheel clearance for this kit. See the "Extended Information" tab for link.


Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd: *15"
*This Brake Kit may fit 15-inch wheels

THIS FRONT BRAKE KIT HAS AN HUB OFFSET OF: +.19
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

NOTE: Check the third picture. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

PART NUMBER: BRC-664
Features
  • OE Hub Offset: +.19
  • (Increase / Decrease Track Width)
  • Spindle Type: Stock or Ridetech Spindles
  • Mount Type: Lug
  • Caliper Type: 4 - Black Powder Coat
  • Rotor Diameter: 12.19
  • Min Wheel Diameter Req'd*: 15
  • Black Powder Coat Finish
  • Forged Billet Aluminum
  • Stainless Pistons
  • High Friction Brake Pads
