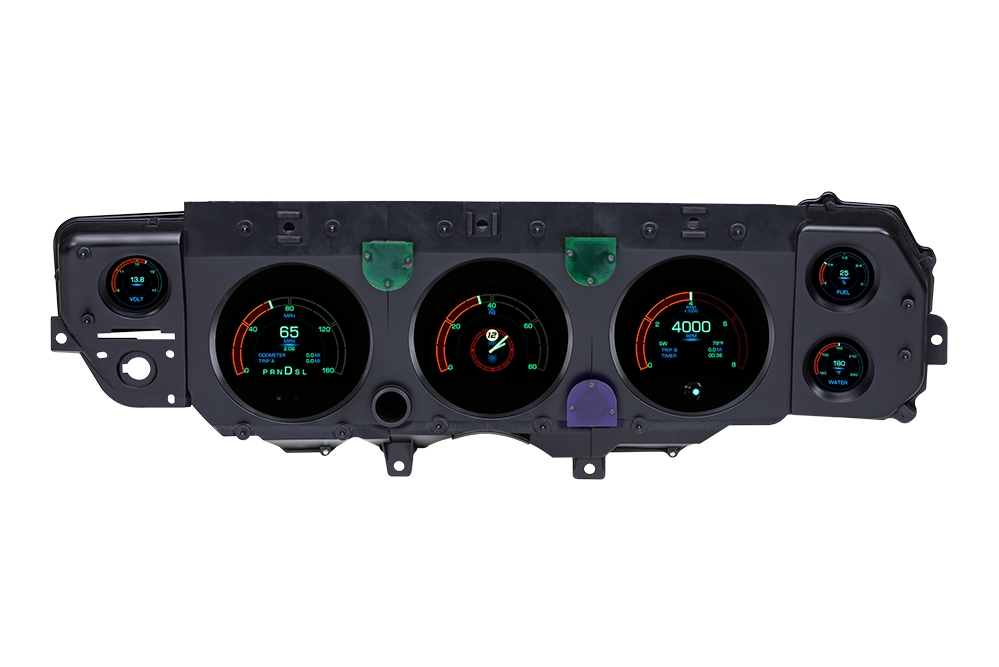

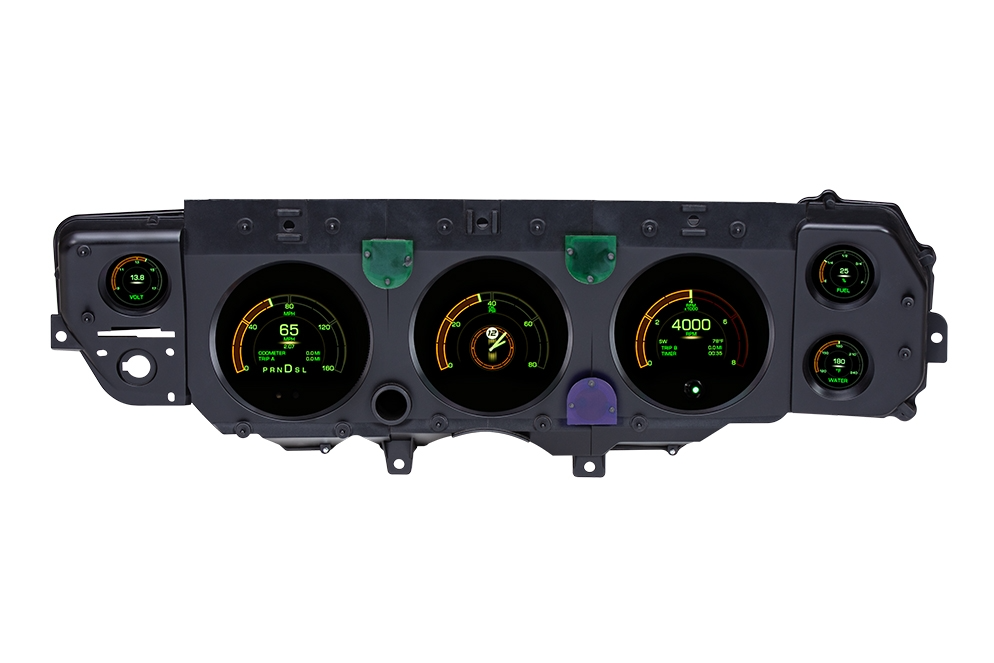

1970 - 1972 Chevelle Dash Instrument Cluster Gauge Set, GRFX : Speedometer, Tachometer, Oil Pressure, Clock, Voltmeter, Water Temp, and Fuel
Upgrade your 1970-1972 Chevelle with Dakota Digital's GRFX Series Instrument Cluster, designed for vehicles equipped with the factory six-gauge dash opening. This direct-fit system combines modern technology with a customizable display while maintaining the classic muscle car look.
The Grafix Series allows you to personalize gauge themes, display colors, warning indicators, and choose between analog, digital, or bar-graph readouts. Built-in GPS-assisted speedometer calibration automatically compensates for tire and gear ratio changes, while Bluetooth connectivity provides wireless access to the Dakota Digital app for setup, calibration, customization, and real-time diagnostics.
Additional features include backup camera compatibility (camera sold separately), an integrated G-force meter, USB update capability, and an external control module for a cleaner installation. Each kit includes a complete sensor package with water temperature, oil pressure, and speedometer sensors, along with the necessary wiring harnesses.
Proudly made in the USA and backed by Dakota Digital's Limited Lifetime Warranty.
NOTE: Will fit directly into stock or reproduction gauge bezels, sold separately.
PART NUMBER: DAS-4081
Speedometer:
Simulated Needle Range up to 200 MPH/ 320 kmh
Digital numeric range up to 255MPH/ 410km/h.
Tachometer:
Simulated Needle Range up to 16,000 RPM
Digital numeric range up to 16,000 RPM
Oil Pressure:
Simulated Needle Range up to 150 psi
Digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
Water Temperature:
Simulated Needle Range up to 260ºF/ 130ºC)
Digital numeric range up to 300ºF/ 130ºC)
Fuel Level:
Simulated Needle Range can show E, 1/4, 1/2, 3/4, F
Digital numeric range 0- 100%
Voltmeter:
Simulated Needle Range up to 18 VDC
Digital numeric range 0- 18VDC
Clock:
12 Hr Analog/ Digital Clock Movement Standard Displays:
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock, Digital (12 hour)
Estimated Range/ Miles to Empty
Hour meter
Performance Meters:
0- 60 MPH Timer (0- 100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall
G-Meter (GForce)
|
