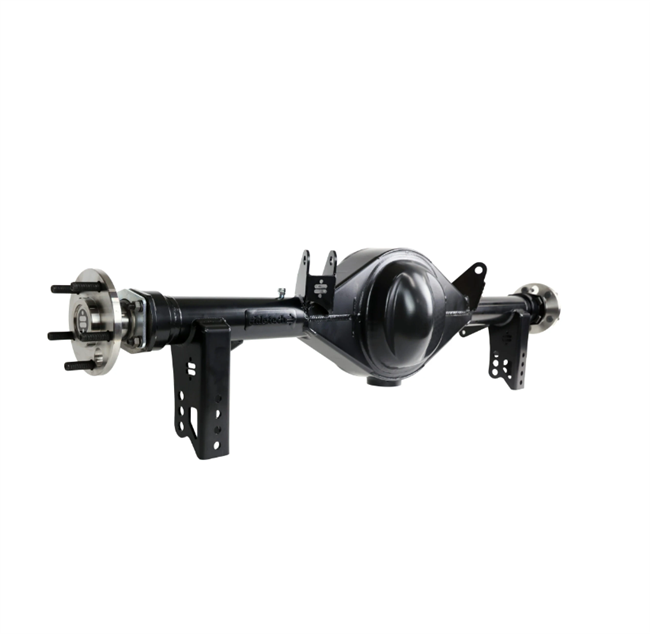

1968 - 1975 Nova Ridetech Rear End & Axle Kit, OE Width
Upgrade your 1968 - 1975 Nova with Ridetech's Ford 9” Rear Axle Housings. Designed for newer Ridetech 4-Link systems (with angled upper bars), these housings come pre-welded with 4-Link and sway bar brackets for a hassle-free bolt-in installation.
Built to handle serious torque, the 9” housings feature a webbed center section with internal gussets, 1/4” wall 3” diameter tubes, and billet steel flanges (New Style Big Bearing/Torino). The pinion is offset 1/2" and the axle flange 2 1/2", with stock and narrowed widths available for mini-tub applications.
Each housing includes a drain plug, jack pad, and Grade 8 T-bolt hardware, plus pre-installed 3rd member studs. Available in black powder-coat or raw finish to suit various build stages.
31-spline axles are heat-treated 1541H alloy, with a 5” x 4 3/4" bolt pattern and Grade 8 1/2"-20 x 2” wheel studs. Timken SET20 bearings are pressed on and include bearing retaining plates.
3rd Members feature a Yukon nodular iron case, aluminum Daytona pinion support, 1350 billet steel yoke, Timken bearings, and an Eaton Trutrac differential for superior traction and handling. Gear ratios available: 3.50, 3.70, 3.89, or 4.11. LubeLocker gaskets prevent leaks and are reusable.
Key Features & Benefits:
Webbed center section with internal gussets for added strength
- 1/4” wall tubes for durability
- 31-spline heat-treated 1541H alloy axles
- Pre-installed high-quality Timken tapered bearings
- Available in raw or black powder-coated finishes
- Grade 8 installation hardware included (housing studs, T-bolts, nuts, washers)
OE Width
- This rear end housing is OE width measuring 60.25 inches
- If you are searching for a Narrow width rear end housing kit, check out part # SUS-511
PART NUMBER: SUS-510
|
|
|
 |
|
 |
