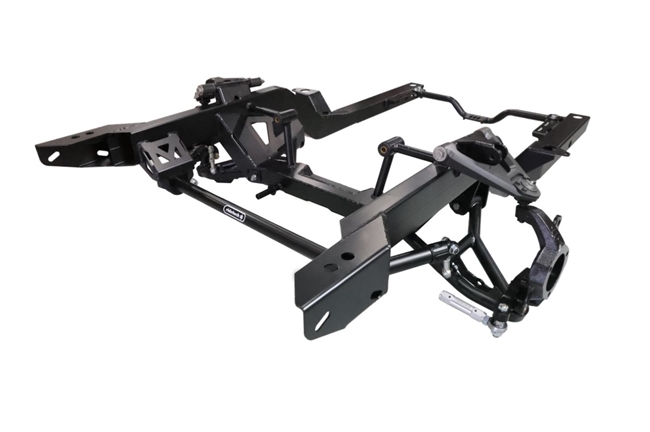

1968 - 1974 Nova Ride Tech Front Subframe Kit, With Pin Spindles
The Ride Tech performance subframe improves X-body handling and fitment with 2 inches of added wheel clearance per side, supporting larger setups like 18×10” wheels with 6.5” backspace. Its optimized geometry enhances camber gain, caster, and roll center for superior performance, while billet aluminum and tubular control arms ensure durability and precision. Compatible with Ridetech coil-overs or Shockwave® air suspension, it offers versatile ride height options.
Designed for modern steering, it integrates a F-body rack-and-pinion system for precise, responsive control. Paired with FOX Factory adjustable shocks, this subframe delivers improved handling, ride quality, and driver confidence on the street or track.
Key Features and Benefits
Brake and Spindle Options:
- Available with AFX Pin or late model Hub spindle design
- Hub spindle allows install of modern C5, C6, or C7 brake packages
- Accommodates Wilwood and Baer brake kits, offering exceptional stopping power.
Enhanced Wheel & Tire Clearance:
- Allows up to 2” more clearance per side, supporting 18×10” wheels with 6.5” backspace.
- Eliminates rubbing and improves turning radius with wider tires.
Coil-Over or Air Suspension Compatibility:
- Works with Ridetech coil-overs or Shockwave® air suspension (sold separately).
- FOX monotube shocks available in single, rebound-adjustable, or triple-adjustable options for ultimate performance.
Drivetrain Flexibility:
- Supports a wide range of engines, including GM LS, Gen V LT, small-block, and big-block Chevy.
- Adjustable crossmember fits popular manual (T-56, TKX) and automatic (TH350, 4L60E) transmissions.
Brake and Spindle Options:
- Available with AFX Pin or late model Hub spindle design
- Hub spindle allows install of modern C5, C6, or C7 brake packages
- Accommodates Wilwood and Baer brake kits, offering exceptional stopping power.
Durable, Precision Construction:
- Billet 6061-T6 aluminum upper control arms and tubular lower control arms.
- Larger sway bar and improved header clearance enhance performance and versatility.
Designed for Seamless Integration:
- Fully compatible with Ridetech’s F-body 4-link systems, rear axles, and subframe connectors.
- Maintains factory track width while lowering the stance 1–3 inches.
PART NUMBER: SUS-696
|
|
|
 |
|
 |
