Home > Nova Parts > 1968 - 1972 Nova Wiring Diagram, Laminated, Color, 11" x 17"
Alternative Views:	Price: $18.95 PART NUMBER: LIT-6084 Choose Year: 1968 1969 1970-71 1969 with Gauges 1972 1970-71 with Gauges 1972 with Gauges

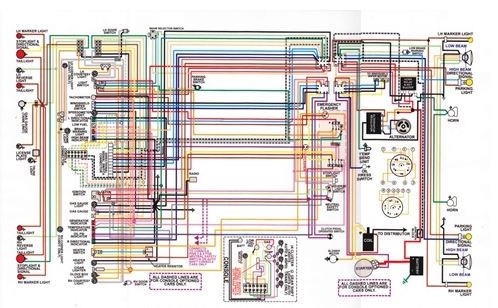

Description   1968 - 1972 Nova Wiring Diagram, Laminated in Color 11" x 17" Wiring diagram for your 68, 69, 70, 71, or 72 model Nova. Overall measures about 11 inches tall and 17 inches wide. Laminated and in full color. This is very detailed with all the color coded wiring matching the same colors in your factory harness. This diagram covers the wiring from bumper to bumper, including interior. It has a durable laminated coating for easy clean up. This is easier to read than the old black and white wiring diagrams. Order yours today! ***NOTE ~ Please choose your desired specific year model and options from the drop down menu! PART NUMBER: LIT-6084 Features Sheet Size 11" x 17" Full Color
