1968 - 1972 Chevelle COLD-CASE Aluminum Radiator for Automatic Trans

1968 - 1972 Chevelle COLD-CASE Aluminum Radiator for Automatic Trans



Alternative Views:


Price: $390.22


PART NUMBER: RAD-4121

Add a Polished Billet Radiator Cap
Click to view another Upgrade #3

Upgrade #3*:



Description Technical Specs Extended Information

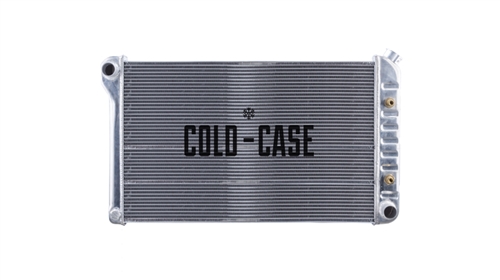

1968 - 1972 Chevelle COLD-CASE Aluminum Radiator for Automatic Trans

This 1968 - 1972 Chevelle or Malibu COLD-CASE radiator is Tig welded, 100% aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models with 1.25" cores, better flow and higher cooling rate. This radiator is original appearing and has the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Muscle Car Central highly recommends this for anyone looking for a high quality direct fit BB or SB 68-72 Chevelle Radiator. We have used this in our own builds and have been more than satisfied... Muscle Car Central Approved!

Want a KIT with Electric Fan and Custom Fit Aluminum Fan Shroud? SEE PART # RAD-4121K

Available Upgrades:

#3 You also can upgrade to include a Polished Billet Aluminum Radiator Cap.


*This COLD CASE radiator works great for 1968 - 1972 cars with heavy duty cooling.

Please Note ~ Heavy Duty Cooling means you have the larger core radiator. Your center core area (not including the side tanks) should measure right around 28 inches left to right. Height of core is about 18 inches.



Fits all automatic 68, 69, 70, 71 and 72 Big Block and Small Block Chevelle and Malibu models WITH HEAVY DUTY COOLING!

PART NUMBER RAD-4121

A GREEN 50/50 Coolant mix is recommended. ORANGE or YELLOW based coolant are known to eat away at the aluminum much quicker and will void the warranty.

Features
  • 100% TIG welded
  • Tri-Flow Design
  • All Aluminum with Polished Tanks!
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • Drain Petcock Included
