1966 - 1968 Chevy Chevelle and Nova Alternator, 55 Amp
1969 - 1972 Chevy Chevelle and Nova Alternator, 55 Amp



Alternative Views:


Price: $119.95


PART NUMBER: ALT-20B

Description

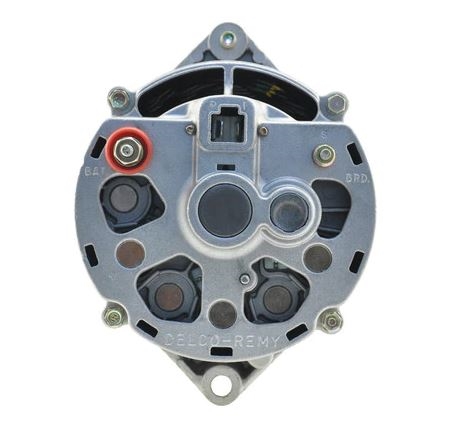

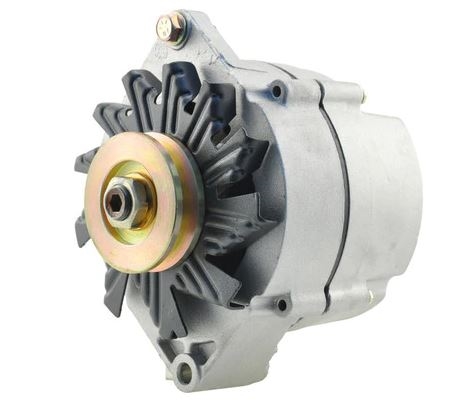

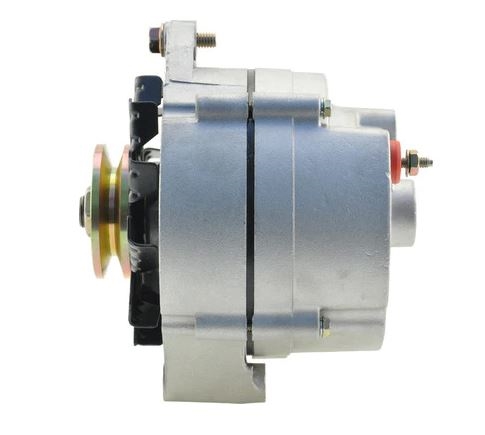

1966 - 1968 Chevy Chevelle and Nova Alternator, 55 Amp

Correct OE style alternator for your 66, 67 and 68 Chevy Small Block, Big Block, or Six Cylinder model. Includes pulley and fan. This Alternator is thoroughly inspected and tested to meet or exceed OEM specifications ensuring Quality. Alternator bearings, brushes and brush springs are replaced with New. Rotors are electronically tested for amperage in insulation quality. Rotor slip rings are machined and checked for concentricity or replaced with New. Stators are tested for insulation quality, phase balance and amp output or replaced with New. All units are performance tested to measure output curve, turn on speed and other critical specifications with test reports enclosed with the product.

For SHORT WATER PUMP models with external voltage regulator, if you have a long water pump see part# ALT-20

Remanufactured; 55 Amp, Fits all 66-68 Small Block, Big Block, and Six Cylinder models

Amperage (A): 55 Amp
Pulley Belt Type: V-Belt
Pulley Included: Yes
( Non Deep Groove Version )
Pulley Type: Conventional
Number Of Pulley Grooves: 1
Voltage (V): 12 Volt
Voltage Regulator Type: External
Pulley Diameter (mm): 71mm
Pulley Diameter (In): 2-13/16
Polarity: Negative
Brushless Design: No
Fan Type: External Plug
Clock Position: 12:00
One Wire Capable: No
Rotation Direction: Clockwise
OE Manufacturer: Delco, Delphi
AC Tap: No
Cooling Method: Air
Series: 10DN

No core charge, but please do not throw you old one away. If you would like to send your old one to us, we will give you a $20 credit.

Please include your Order # for your purchase of one of our Alternators and send your old one to:
Muscle Car Central
3329 Colonel Rd.
Richmond, Ky 40475

PART NUMBER: ALT-20B
Features
  • High performance components deliver reliable cranking and charging power
  • Assembled with premium bushings, bearings, seals and lubricants
  • Every component inspected to strict quality standards
  • All sub-assemblies 100% tested
  • Remanufactured to meet or exceed OEM specifications
  • Every unit is 100% performance tested
  • Industry-leading warranty
