Home > Chevelle Parts > 1964 - 1967 Chevelle CONVERTIBLE TH350, Muncie, Powerglide, T-10, 700R4, 4L60, 4L60E, super T-10, Saginaw, TH200 Transmission Crossmember
Alternative Views:	Price: $380.00 PART NUMBER: TRA-4202

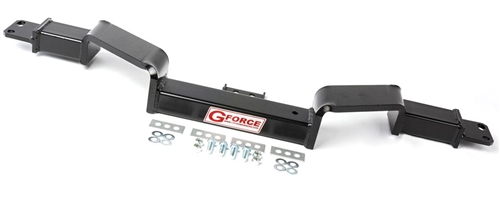

Description Technical Specs   New transmission crossmember for your 1964 - 1967 CONVERTIBLE Chevelle. Fits the following transmissions: TH350, Muncie, Powerglide, T-10, 700R4, 4L60, 4L60E, super T-10, Saginaw, TH200. Finished in a black powder coat. Includes new mounting hardware. Our NEW high performance G Force Chevrolet coupe transmission crossmember gives you the room to run a true dual exhaust system. This transmission crossmember has a double hump design, which gives you plenty of ground clearance! Our A-body crossmember is a direct bolt on. Made from boxed tubing (1/8 in. thick) to handle the frame twisting power of your high performance small block, big block, or LS1, LS2, LS3, or LSX engine. Finished in a black powder coat. Includes new mounting hardware. Purchase transmission mount separately part # TRA-724. 1964 - 1967 convertible (note: distance between crossmember frame holes is approximately 43-1/4″. Measure your frame or crossmember to insure proper selection) PART NUMBER: TRA-4202 The crossmember is installed with the transmission mounting tab positioned towards the front of the car. The crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom. The supplied aluminum spacers are utilized to provide custom positioning of the transmission mount. They are to be positioned between the crossmember mounting tab and the transmission mount. Select the desired amount of spacers and match a bolt of proper length to insure full engagement into the transmission mount. Some applications will not require any spacers. Some vehicles of this generation are equipped with a crossmember that bolts directly to the vehicles frame rail, while others are equipped with a crossmember that utilizes a tab that sets on the frame rail and is then clamped by a steel cap that is embedded with a rubber liner. The RCAEC1-350 crossmember bolts directly to the frame rail and utilizes the factory frame holes. To utilize the provided 7/16 hardware it is necessary to enlarge the holes in the frame rails with a 1/2″ drill. If the installer chooses to utilize the stock size 3/8 hardware, it is strongly recommended that the installer obtain Grade 8 fasteners and washers to compensate. Features Black Powder Coat Finish Boxed Tubing Includes New Mounting Hardware Made in the USA Other Great Parts That You Might Need 1964 - 1972 Chevelle / Nova Polyurethane Transmission Mount, Black Price: $55.40 Add
