1969 - 1970 Chevelle Fuel Line Pump To Carburetor Line, 396 with Quadrajet, Choose Original Material or Stainless Steel
1969 - 1970 Chevelle Fuel Line Pump To Carburetor Line, 396 with Quadrajet, Choose Original Material or Stainless Steel



Alternative Views:
Price: $37.95


PART NUMBER: FUE-4208


Choose Line Material*:


Description

1969 - 1970 Chevelle Fuel Line Pump To Carburetor Line, 396 with Quadrajet, Choose Original Material or Stainless Steel

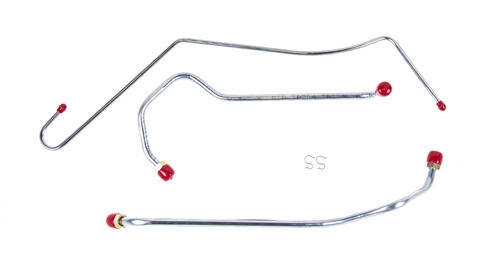

New 1969 - 1970 Chevelle 396 with Quadrajet, Fuel Pump to Carb. Line now available. Choose either original material or stainless steel. This 69 Big Block Chevelle fuel pump to carburetor line connects the fuel pump to the carburetor. This BB line is intended to work with factory style fuel pump, motor and carburetor combinations. Complete 5 piece set includes, (3) Lines and (2) Clips!

Please Note ~ This line is designed to work with factory type fuel pump outlet locations and factory type carburetor outlet locations. Please confirm before ordering or you will surely have to modify.

Made in the U.S.A.

PART NUMBER: FUE-4208
Features
  • 4 Side Line Specs:
  • Diameter: 1/4" O.D.
  • Material: O.E. - Plated Mild Steel or 304L Stainless Steel
  • Tubing Wall: .028" Thickness
  • Endform 1: HB
  • Endform 2: HB
  • End-to-End Length: 17.2"
  • Pre-Bent Length: 24.585"
  • Process: CNC precision bending
  • Origin: Made in the U.S.A.
  • LH Line Specs:
  • Diameter: 3/8" O.D.
  • Material: O.E. - Plated Mild Steel or 304L Stainless Steel
  • Tubing Wall: .028" Thickness
  • Endform 1: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
  • Endform 2: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
  • End-to-End Length: 14.75"
  • Pre-Bent Length: 17.7"
  • Side Line Specs:
  • Diameter: 3/8" O.D.
  • Material: O.E. - Plated Mild Steel or 304L Stainless Steel
  • Tubing Wall: .028" Thickness
  • Endform 1: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
  • Endform 2: 3/8' Tube, 5/8-18 Thread, 5/8 Hex, Double flair. Std tube
  • End-to-End Length: 10.5"
  • Pre-Bent Length: 16.85"
